CR MACHINE DEALERS, SALES & SERVICE IN BANGALORE, KARNATAKA


Biomed Techology is Computed Radiography(CR) wholesale Trader, service and maintenance wide range of products which include refurbished Digitizer machines agfa cr35x, agfa cr30Xm, agfa cr30x cr machine, agfa cr15x, agfa cr12-x machine, refurbished agfa cr10-x machine, Fujifilm prima T, Fujifilm prima T2, Fujifilm capsula X, Fujifilm capsula XL2, Carestream vita cr, Carestream vita flex, and printers Agfa drystar 5301, Agfa drystar 5302, Carestream dryview 5700, Carestream dryview 5950.


Computed Radiography(CR) Machine

Biomed Technology is a professional company incorporated to promote high quality, cost effective CR machine Sales, Service and Repair. Our team has extensive experience of over 10 years in medical imaging service industry and installed all over India and sales to world.
We specialized in sales, service for CR machines are AGFA, Fujifilm, and Carestream. In addition to the innovative service and parts solutions we can assist you from end to end on your imaging project requirements including system purchase, site planning, relocation, installation and applications. Our clients range from big and small hospitals, nursing homes, diagnostic centers and individuals running diagnostic facilities.
AGFA:AGFA CR 10-X, AGFA CR 12-X, AGFA CR 15-X , AGFA CR 25.0, AGFA CR 30-X,AGFA CR 30-Xm, AGFA CR 35-X, AGFA DRYSTAR 5301, AGFA DRYSTAR 5302
Fujifilm:FUJIFILM FCR Prima T, FUJIFILM FCR PRIMA T2, FUJIFILM FCR CAPSULA X, FUJIFILM FCR CAPSULA XL II,
Carestream:CARESTREAM DIRECT VIEW VITA CR, CARESTREAM VITA FLEX, CARESTREAM DRYVIEW 5700, CARESTREAM DRYVIEW 5950,

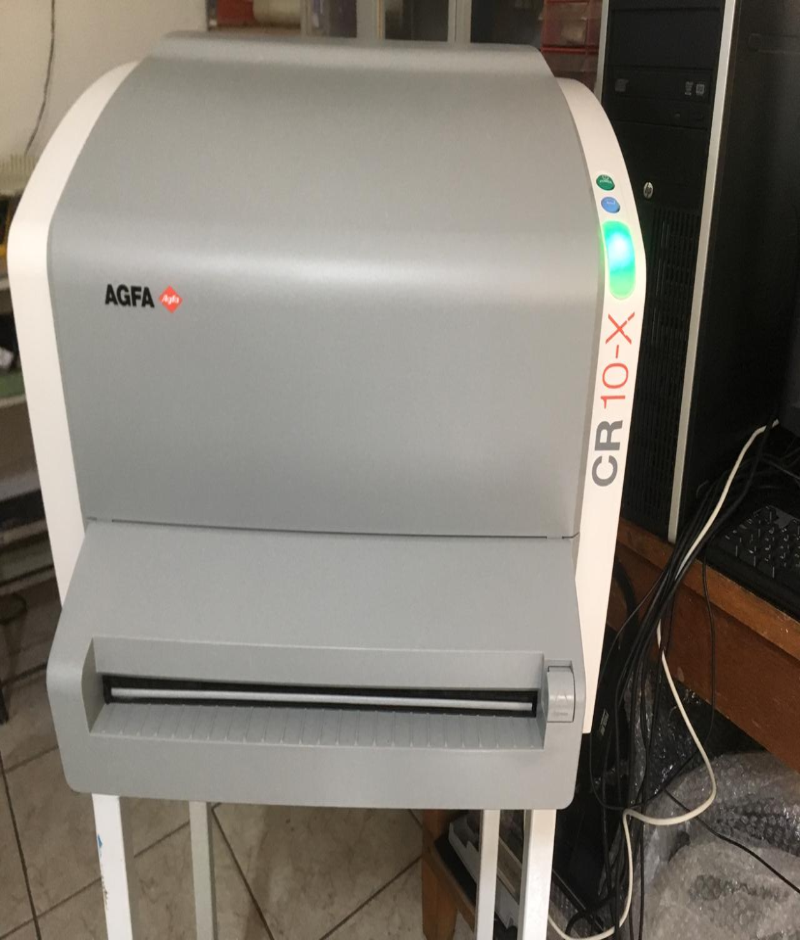

AGFA CR 10-X



SPECIFICATION          PARAMETER
Brand Agfa Model CR 10-X Digitizer Type Single cassette feed DISPLAY LED Status Indicator Greyscale resolution Data acquisition:20bits/pixel Output to processor: 16 bits/pixel Dimensions and weight W x D x H: 580 x 700 x 471 mm Weight: 29 kg POWER Input: 100V - 240V

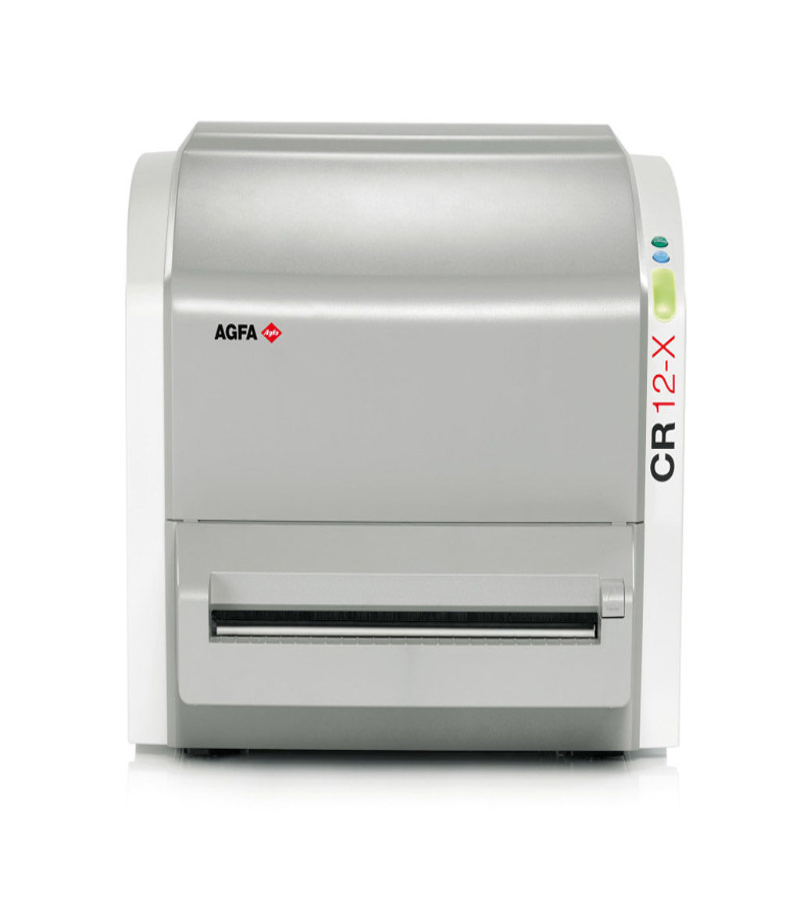

AGFA CR 12-X



SPECIFICATION          PARAMETER
Brand Agfa Model CR 12X Digitizer type Single-cassette feed Throughput 35 x 43cm = approx. 60 plates/hour Display LED Status Indicator Status and error messages on external PC monitor Greyscale resolution Data acquisition: 20 bits/pixel Output to processor: 16 bits/pixel Power 100V - 240V, <2A/50-60 Hz Cassette Type CR MD1.0T General Cassette / CR MD1.0 General Plate Dimensions W x D x H (mm) 580 x 700 x 471 WEIGHT(kg) 29

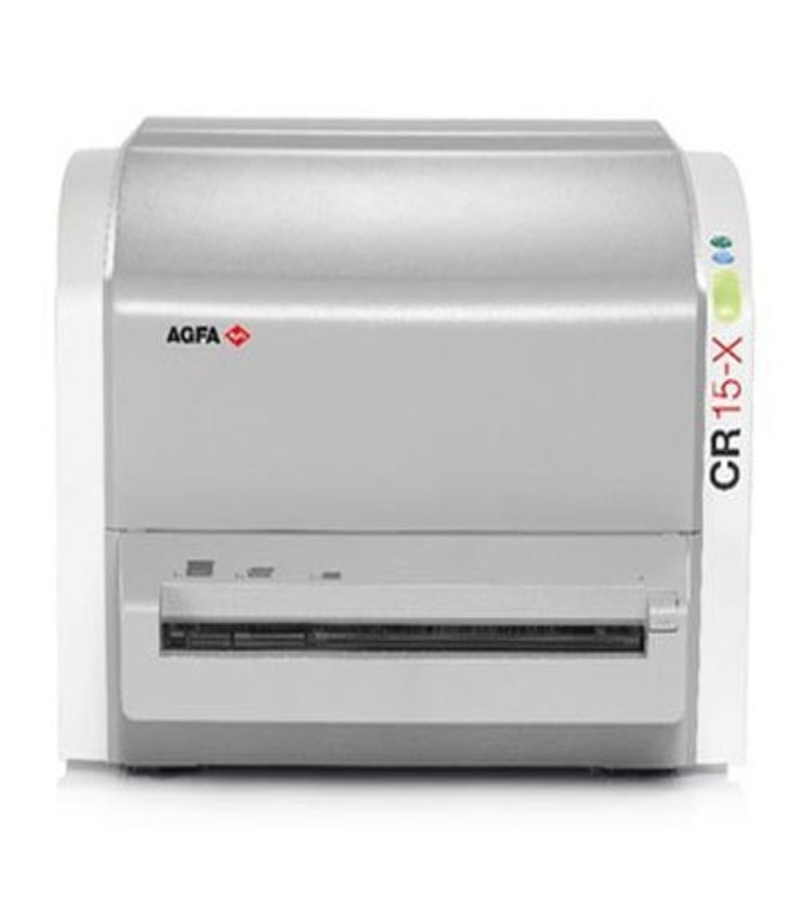

AGFA CR 15-X



SPECIFICATION          PARAMETER
Brand Agfa Model CR 15-X Digitizer Type Single cassette feed Throughput: Up to 102 plates/hour DISPLAY LED Status Indicator Greyscale resolution Data acquisition:20bits/pixel Output to processor: 16 bits/pixel Dimensions and weight W x D x H: 580 x 700 x 471 mm Weight: 30 kg POWER Input: 100V - 240V Environmental Effects Noise level:max 65dB(A) Heat dissipation: standby 30W, max. 140 W

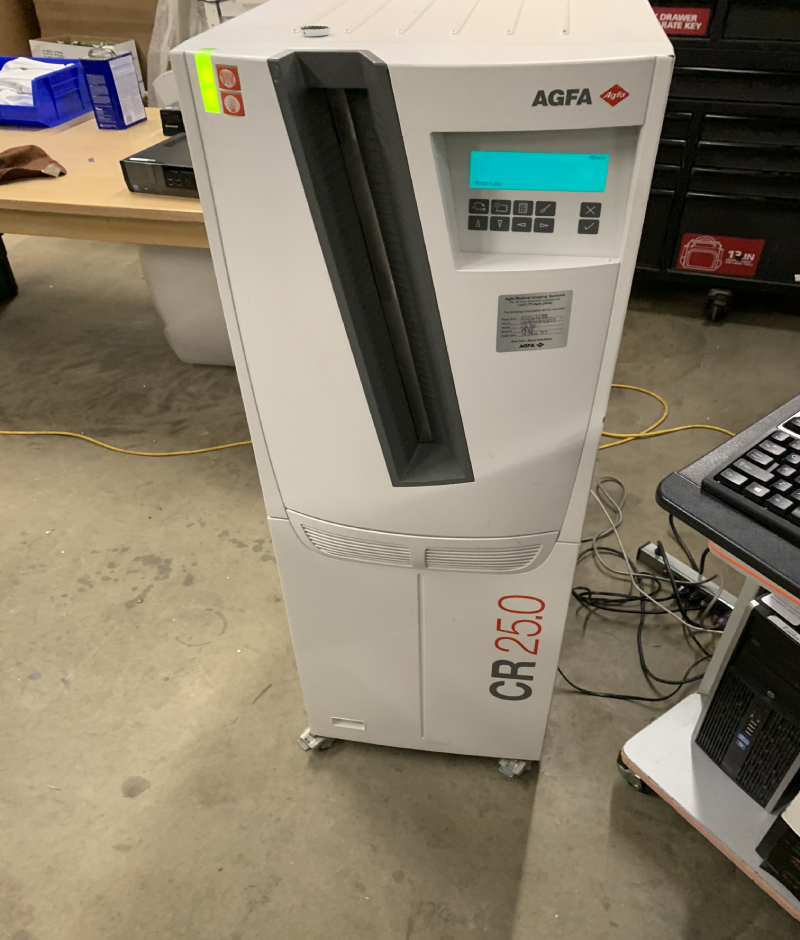

AGFA CR 25.0



SPECIFICATION          PARAMETER
Brand Agfa Model CR 25.0 READER/DIGITIZER Yield/hr Up to 73 USES All radiographic exams Type 12-bit laser scanner H x W x D (cm) 141 x 45 x 75 Cassette buffer capacity Single-cassette handling WEIGHT(kg) 210 POWER NEEDED 100-240 VAC, 50/60 Hz CASSETTE DURATION (READER/DIGITIZER) 20,000 to 40,000+ cycles DICOM COMPATIBILITY (READER/DIGITIZER) SCU and print class USES(STAINING POSTS) All radiographic exams SYSTEM CHARACTERISTICS Image-plate reader, ID/preview terminal and software, Windows NT processing station and software

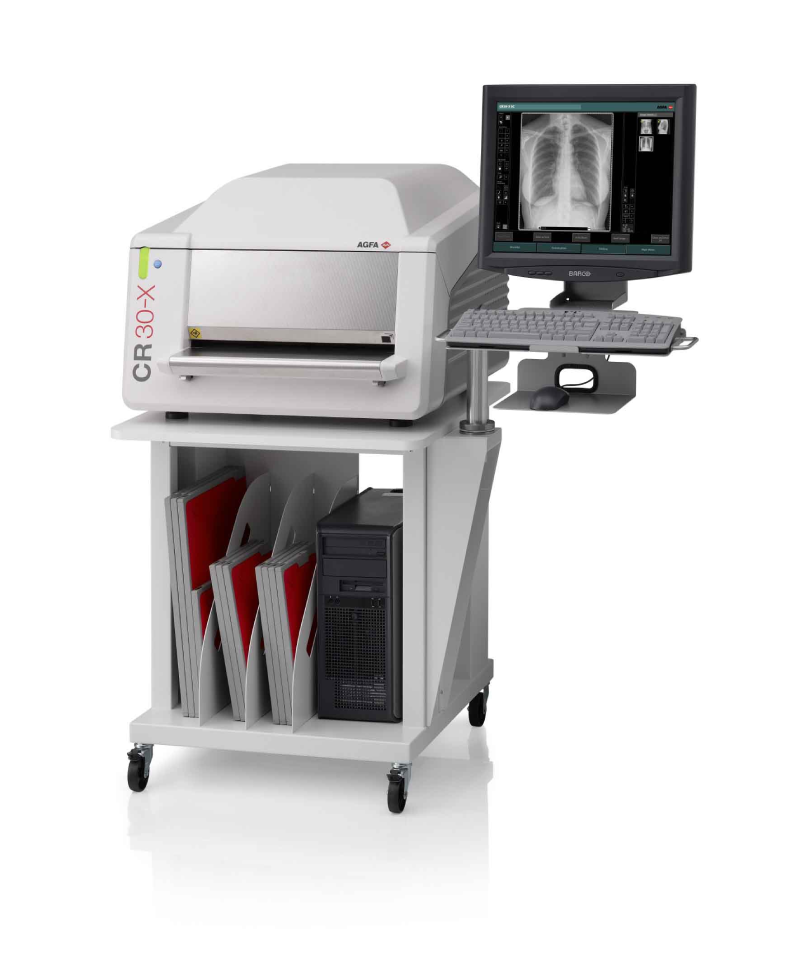

AGFA CR 30-X



SPECIFICATION          PARAMETER
Brand Agfa Model CR 30-X READER/DIGITIZER Type ≤20-bit laser scanner H x W x D (cm) 46.4 x 69.3 x 70.1 Cassette buffer capacity Single-cassette handling WEIGHT(kg) 210 POWER NEEDED 100, 120, 220-240 VAC; 50/60 Hz; single-phase DICOM 3.0 storage SOP classes SCU and print class USES(STAINING POSTS) All radiographic exams SYSTEM CHARACTERISTICS Image-plate reader, ID/preview terminal and software, Windows XP processing station and software 14 x 17 in cassette (PIXEL MATRIX SIZE) 3480 x 4248 35 x 43 cm cassette 24 x 30 cm cassette (PIXEL MATRIX SIZE) 3480 x 4248 2328 x 2928 18 x 24 cm cassette (PIXEL MATRIX SIZE) 1728 x 2328

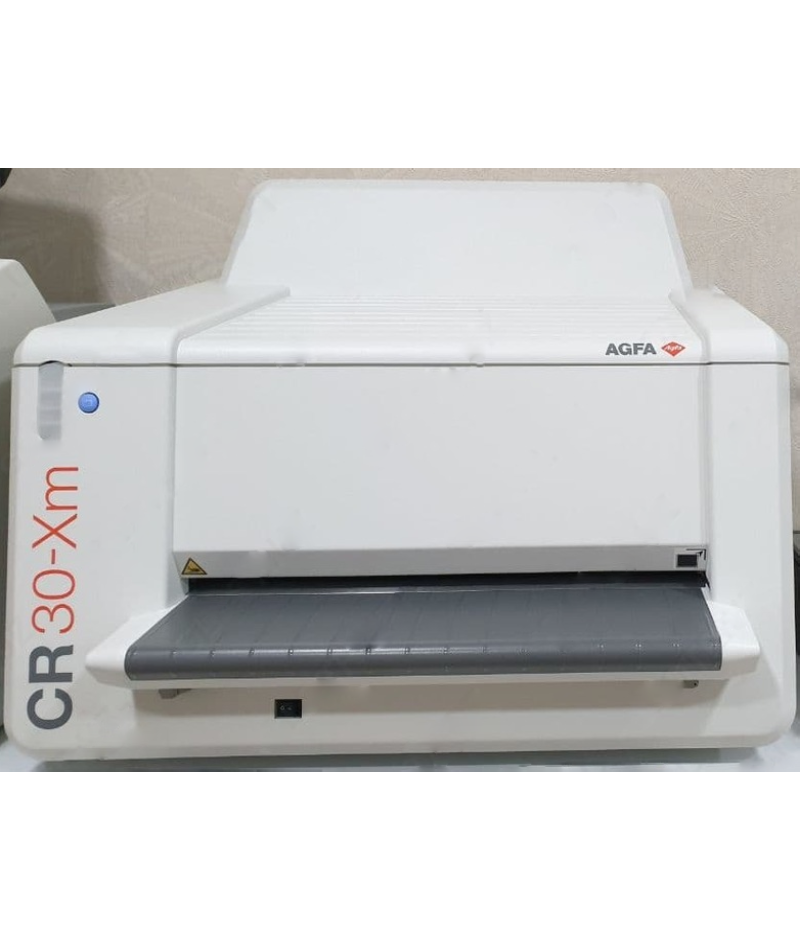

AGFA CR 30-Xm



SPECIFICATION          PARAMETER
Brand Agfa Model CR 30Xm Digitizer type Single-cassette feed Throughput 35 x 43cm = approx. 60 plates/hour 24 x 30cm mammo=approx. 32plates/hour Display LED Status Indicator Status and error messages on external PC monitor Greyscale resolution Data acquisition: 20 bits/pixel Power 220 - 240V, 1.0A/50-60 Hz Cassette Type CR MD4.0T General Cassette /CR MM3.0T Mammo Cassette and Plate Dimensions W x D x H (mm) 693 x 701 x 546 WEIGHT(kg) 72 POWER NEEDED 220 - 240V, 1.0A/50-60 Hz

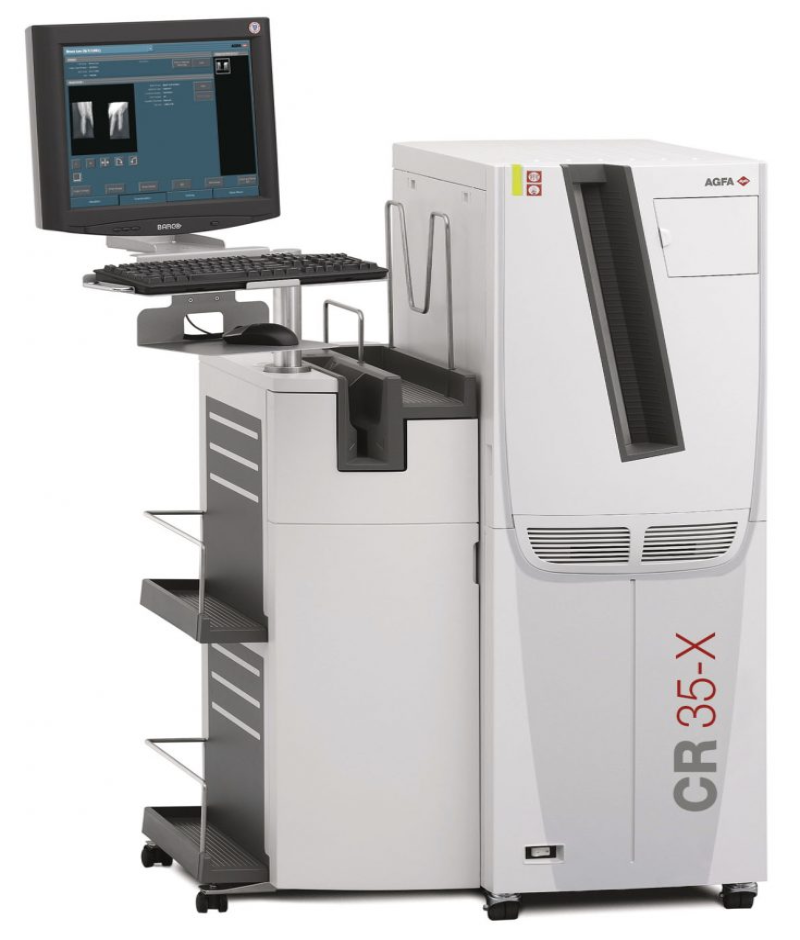

AGFA CR 35-X



SPECIFICATION          PARAMETER
Brand Agfa Model CR 35-X Digitizer Type Single cassette Type (CONFIGURATION) 12-bit laser scanne Weight: 270 kg POWER NEEDED 100, 120, 230-240 VAC; 50/60 Hz; 15/16A; single-phase Image storage ~5,000 images DICOM 3.0 storage SOP classes (INTEGRATION) SCU and print class CASSETTE DURATION (READER/DIGITIZER) 25,000+ cycles

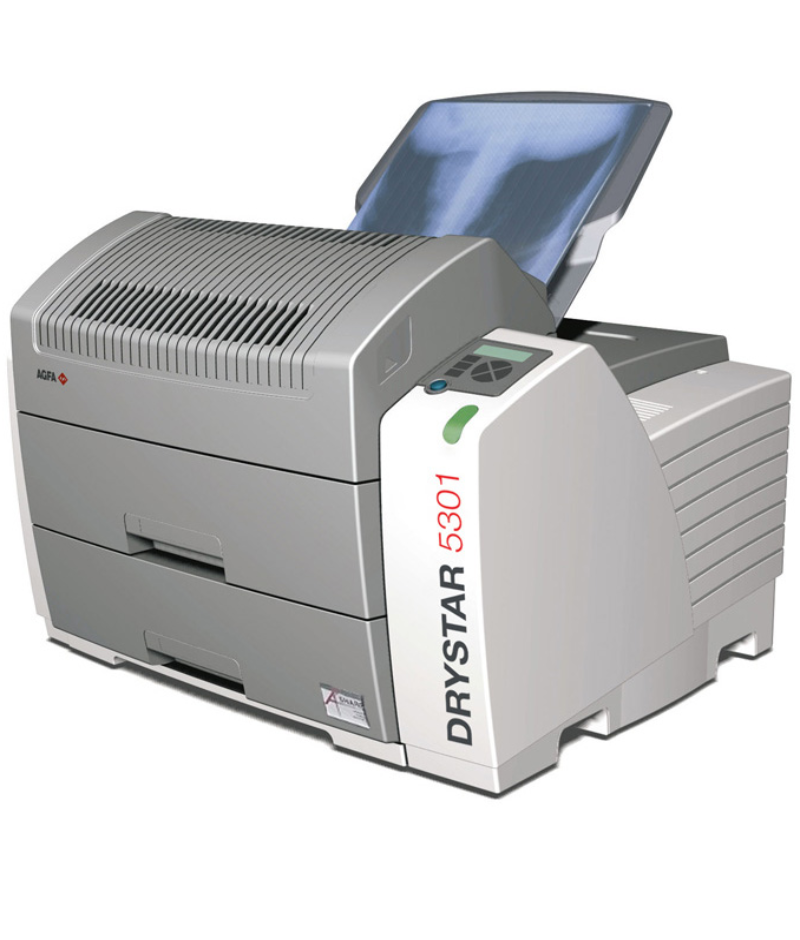

AGFA DRYSTAR 5301



SPECIFICATION          PARAMETER
Brand Agfa Model Drystar 5301 Throughput 14x17inch: 75 sheets/hour; Access time(first sheet) 77sec(14x17 inch); 8x 10 inch: 130sheets/hour 11 x 14 inch: 86 sheets/hour Printing resolution Geometrical: 320 dpi; Contrast: 14 bits printing Types DRYSTAR DT2 B: blue base; DRYSTAR DT2 C: clear base; Dimensions W x D x H (mm) 72.8 x 71.5 x 53.6 cm (H = 67.6cm with output tray) WEIGHT(kg) 77 POWER NEEDED Auto ranging 100 - 240 V: 50/60 Hz.

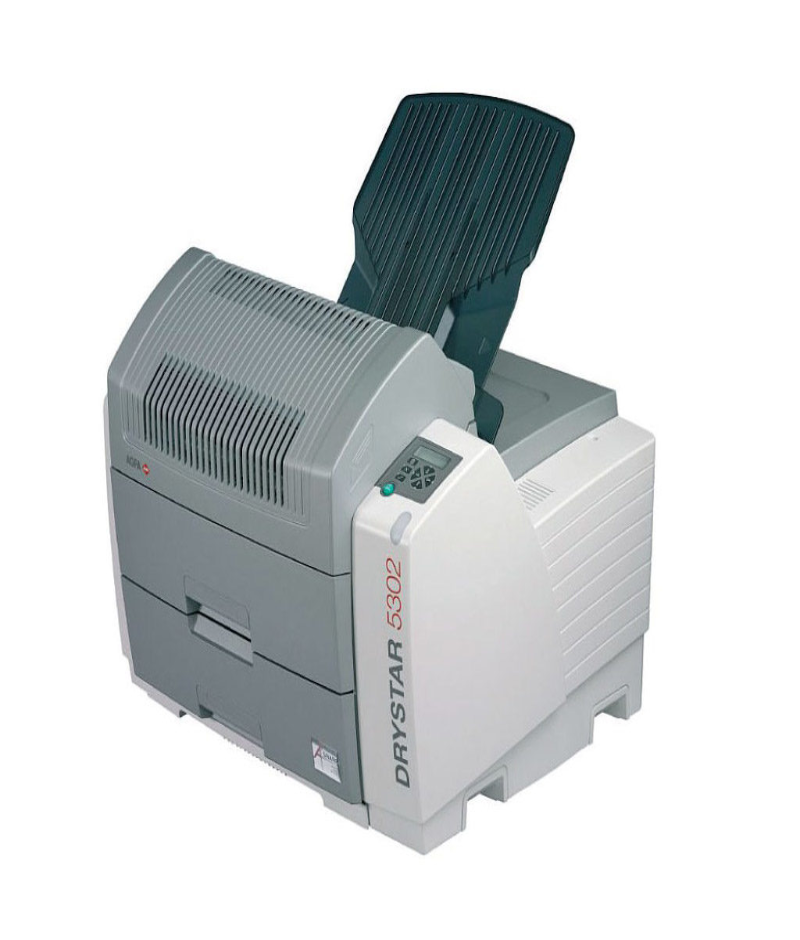

AGFA DRYSTAR 5302



SPECIFICATION          PARAMETER
Brand Agfa Model Drystar 5302 Throughput 14x17inch: 75 sheets/hour; Access time(first sheet) 65sec(14x17 inch); 8x 10 inch: 130sheets/hour for mammography; Access time (first sheet) 45sec (8 x 10 inch MAMMO) Printing resolution Geometrical: 508 dpi; Contrast: 14 bits printing Cassette Type CR MD4.0T General Cassette /CR MM3.0T Mammo Cassette and Plate Types DRYSTAR DT2 B: blue base; DRYSTAR DT2 C: clear base; DRYSTAR DT2 MAMMO. Dimensions W x D x H (mm) 72.8 x 71.5 x 53.6 cm (H = 67.6cm with output tray) WEIGHT(kg) 90 POWER NEEDED Auto ranging 100 - 240 V: 50/60 Hz.

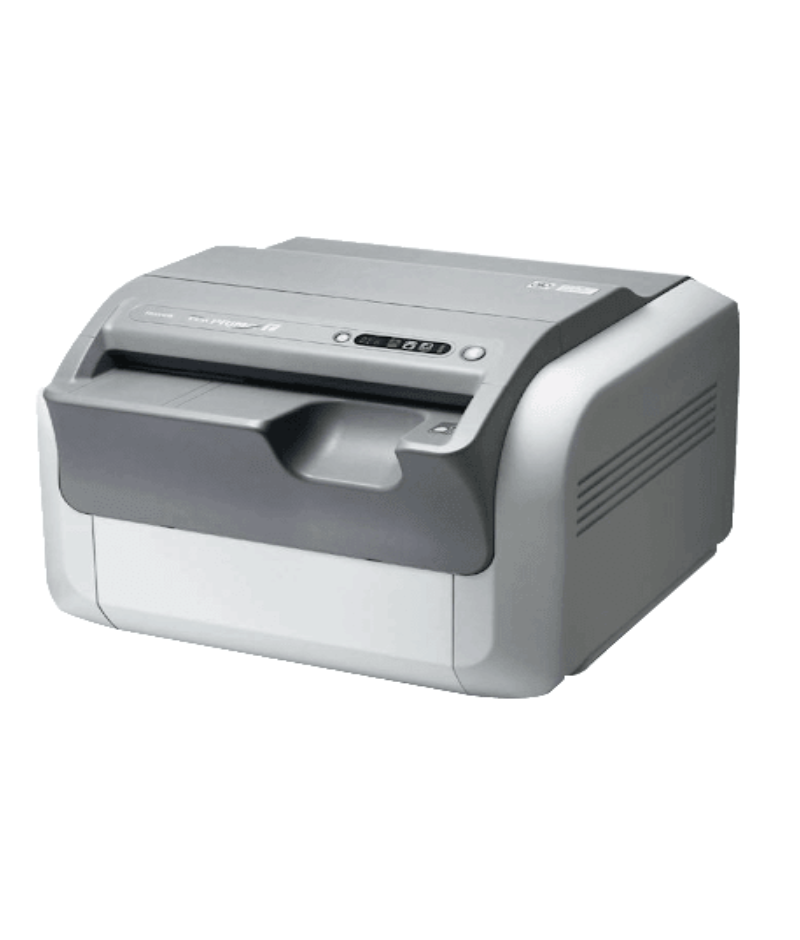

FUJIFILM FCR Prima T



SPECIFICATION            PARAMETER
Brand Fujifilm Model Fuji FCR Prima T Supplies Imaging Plate ST-VI: 35x43cm,35x35cm,10”x12”,8”x10”, 24x30cm,18x24cm,15x30cm(Variation) IP Cassette Type CC: 35x43cm,35x35cm,10”x12”,8”x10”,24x30cm, 18x24cm,15x30cm (Variation) Time Required for IP Feed/ Load Min.64 sec.(Min. 54 sec.)* Processing Capacity Up to 57 IPs/ hr.(Up to 67IPs/hr.)* Reading Specification 10 pixels/ mm, 5 pixels/mm** Time to Start on Display Min. 33 sec Time to Print on DRYPIX PRIMA Approx. 165 sec. (Approx. 155 sec.)** in case of 35x43cm Number of Stacker 1 Dimensions (WxDxH) 560x540x392mm Weight 39kg Power Supply Conditions Single phase 50- 60Hz AC120- 240V ±10% 1.9A (max)

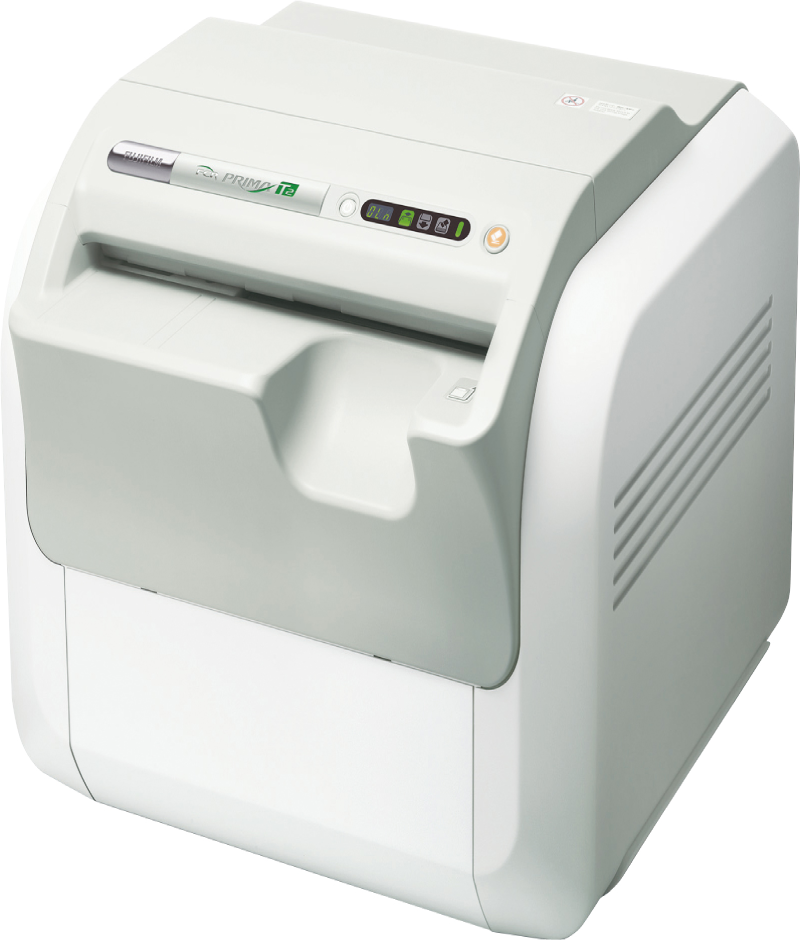

FUJIFILM FCR PRIMA T2



SPECIFICATION            PARAMETER
Brand Fujifilm Model Fuji FCR Prima T2 Supplies Imaging Plate ST-VI: 35x43cm,35x35cm,10”x12”,8”x10”, 24x30cm,18x24cm,15x30cm IP Cassette Type CC: 35x43cm,35x35cm,10”x12”,8”x10”,24x30cm, 18x24cm,15x30cm Time Required for IP Feed/ Load Min.49 sec. Processing Capacity Up to 73 IPs/hr. Reading Specification 10 pixels/mm, 5 pixels/mm Time to Start on Display Min. 33 sec Time to Print on DRYPIX PRIMA Approx. 165 sec. (Approx. 155 sec.)** in case of 35x43cm Number of Stacker 1 Dimensions (WxDxH) 560x540x392mm Weight 39kg Power Supply Conditions Single phase 50- 60Hz AC120- 240V ±10% 1.9A (max)

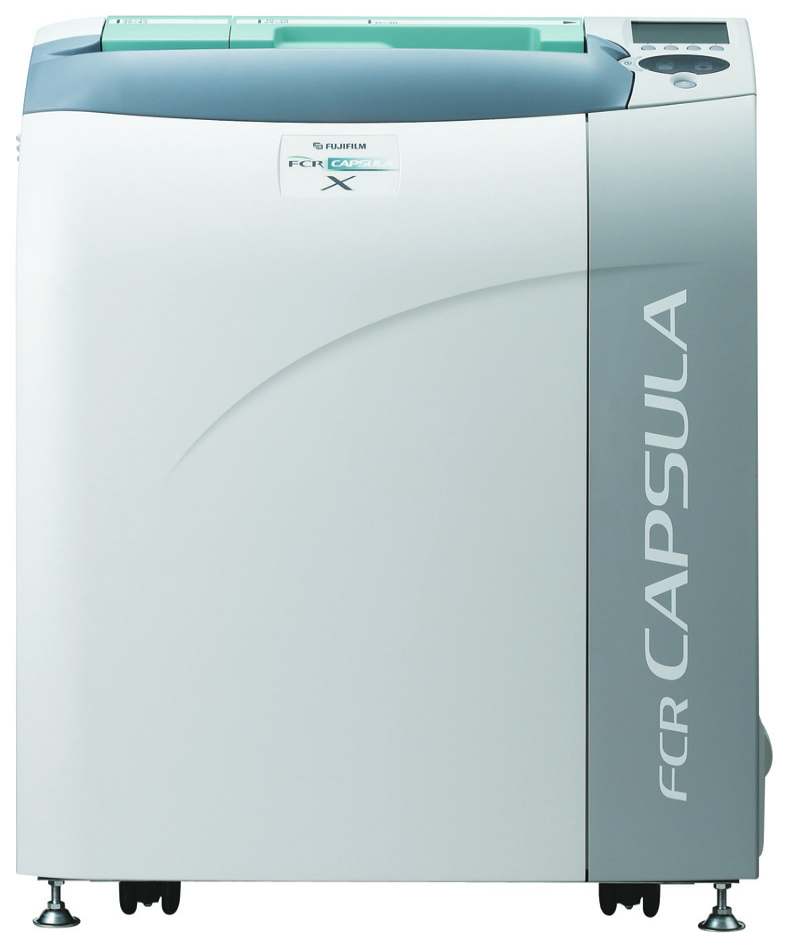

FUJIFILM FCR CAPSULA X



SPECIFICATION        PARAMETER
Brand Fujifilm Model Fuji FCR Capsula X Processing Capacity 43 Matrix size 18 x 24cm (10 pixels) 1770 x 2370 24 x 30cm (10 pixels) 2364 x 2964 35 x 35cm (10 pixels) 3520 x 3520 35 x 43cm (10 pixels) 3520 x 4280 20 x 25cm (10 pixels) 2000 x 2510 25 x 30cm (10 pixels) 2505 x 3015 15 x 30cm (10 pixels) 1464 x 2964 Applicable IP Type ST-VI Dimensions (WxDxH) 590x380x810 mm Weight 99 kg Power Consumption 0.2 kW

FUJIFILM FCR CAPSULA XL II



SPECIFICATION         PARAMETER
Brand Fujifilm Model Fuji FCR Capsula XL II Other System Components Optional upgrade kit for 50-micron reading with HR-V or HR-VI IP cassette type CC, LC, CH CR Console, CONSOLE ADVANCE*, AWS-c Dry Imager: DRYPIX 2000, 4000, 7000 Supplies Imaging Plate: ST-VI: 35x43cm, 35x35cm, 10"x12", 8"x10", 24x30 cm, 18x24cm, 15x30cm HR-V: 24x30 cm, 18x24cm HR-VI: 24x30 cm, 18x24 cm IP Cassette: Type CC: 35x43cm, 35x35cm, 10"x12", 8"x10", 24x30cm, 18x24cm, 15x30cm Type LC: 35.4x124.5 cm, 35.4x101.7cm, 35.4x83.7cm,25.2x58 cm, 24x57cm Type CH: 24x30cm, 18x24cm Dimensions (WxDxH) 590x380x810 mm

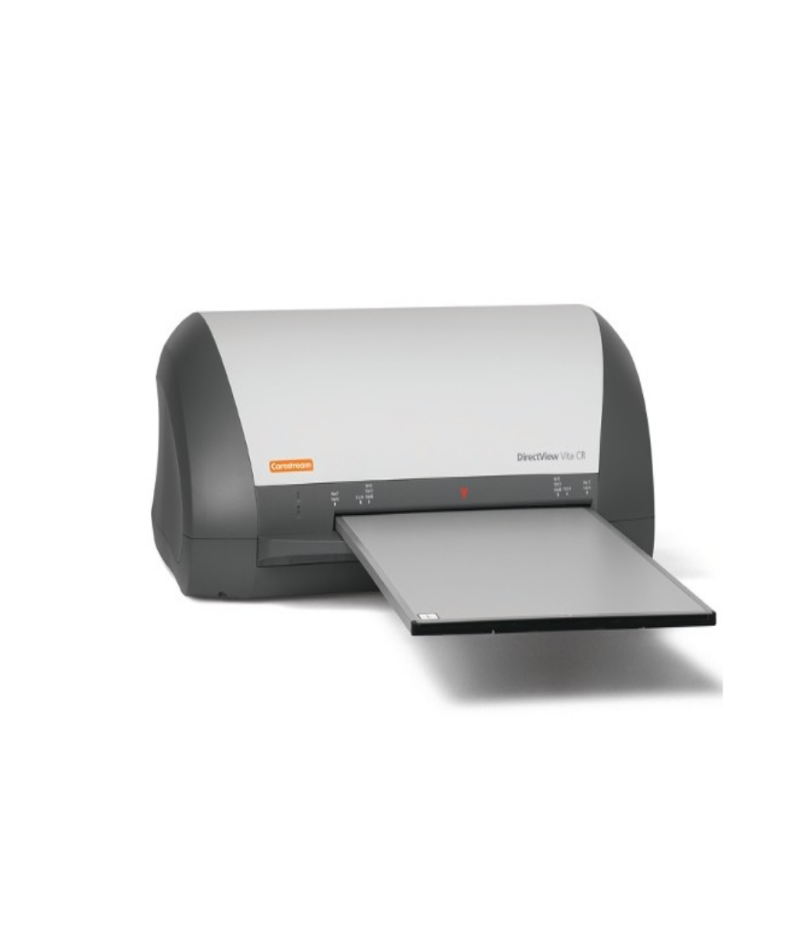

CARESTREAM DIRECT VIEW VITA CR



SPECIFICATION           PARAMETER
Brand CareStream Model DirectView Vita CR Dimensions 34cmx75cmx55cm Weight 36kg Scanning Resolutions 12 Pixels/mm 6 Pixels/mm Plate Sizes 8 x 10 in, 14 x 17 in, 14 x 14 in, 14 x 33 in, 10 x 12 in, 11 x 14 in, 24 x 30 cm, 15 x 30 cm Features Enhanced User Interface for Acquisition Web Order Entry DICOM and HL7 Compliant DICOM PrintMulti-format Printing DICOM Viewer Available Options Mini-PACS Archiving Clinical Reporting Web Viewer License Long-Length Imaging DICOM Store Service Class Provider(SCP) Advanced Measurement Tools Set OmniLink Software Tablet Viewer Dental Panoramic Package

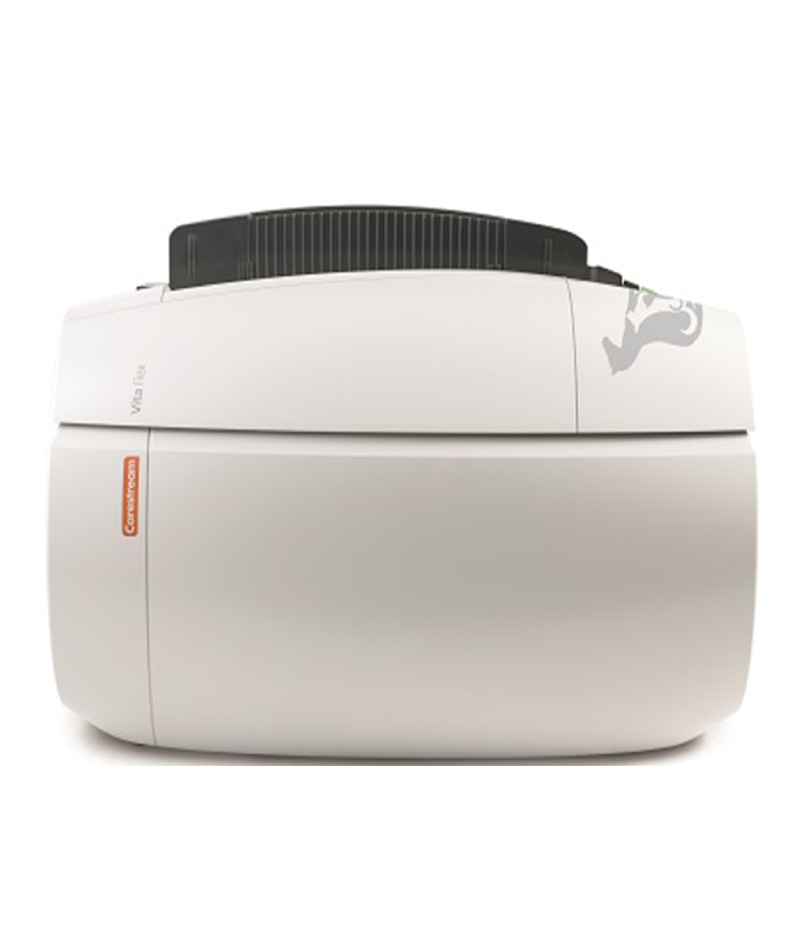

CARESTREAM VITA FLEX



SPECIFICATION           PARAMETER
Brand CareStream Model Vita Flex Weight 25kg Dimensions(W x D x H) 68x34x45 cm Dynamic Range 0 < 40 mR Electrical Rating 100-240 V AC 50/60 Hz Maximum Power Consumption 120 W Power Consumption in Standby Mode 42 W Power Supply Conditions AC Power 100~240 V AC, 50/60 Hz, 1.5 A Heat Dissipation While in Operation 330 BTU/H (97 W) Erase Time 7 < 80 s (depending on screen exposure) Grayscale Resolution 12-bit processed 16-bit unprocessed

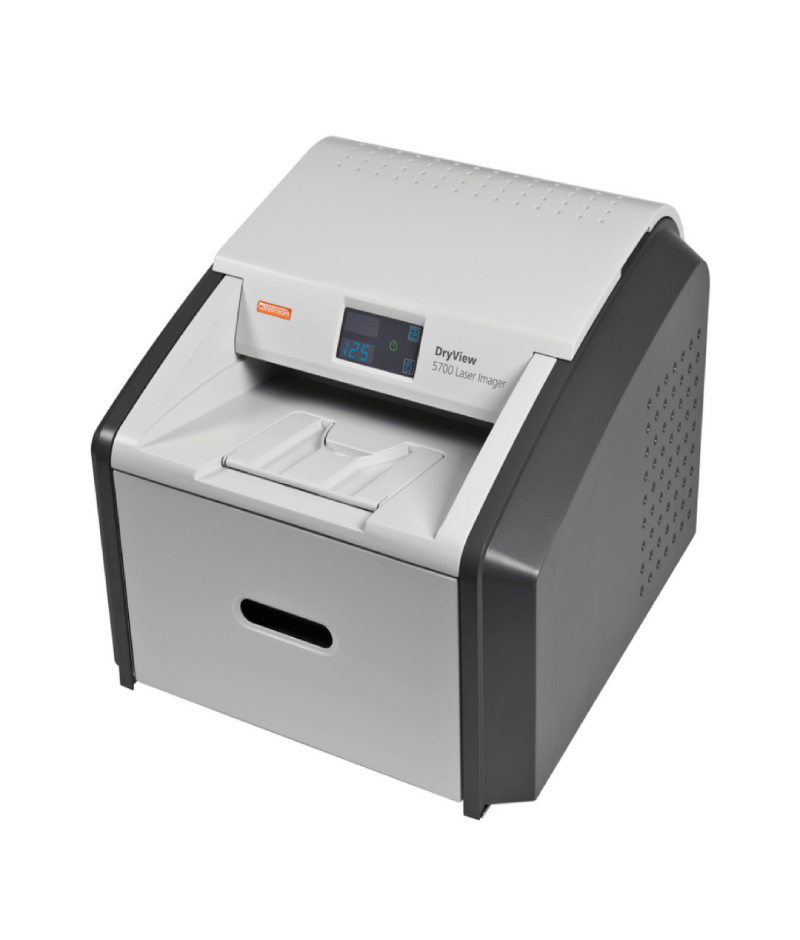

CARESTREAM DRYVIEW 5700



SPECIFICATION         PARAMETER
Brand Carestream Model Dryview 5700 Technology Photothermographic(dry laser) Laser image quality 325 pixels per inch, 78 micron laser spot spacing 14-bit pixel depth architecture Throughput Capable of greater than 40 films per hour 14 x 17 in. Capable of greater than 70 films per hour 8 x 10 in. Laser Imaging Film Blue 7-mil polyester base Daylight-load film cartridges 125 sheets/cartridge film sizes 14 x 17 in 11 x 14 in 10 x 12 in 8 x 10 in Weight 54 kg Power 100–120 VAC; 50/60 Hz 200–240 VAC; 50/60 Hz

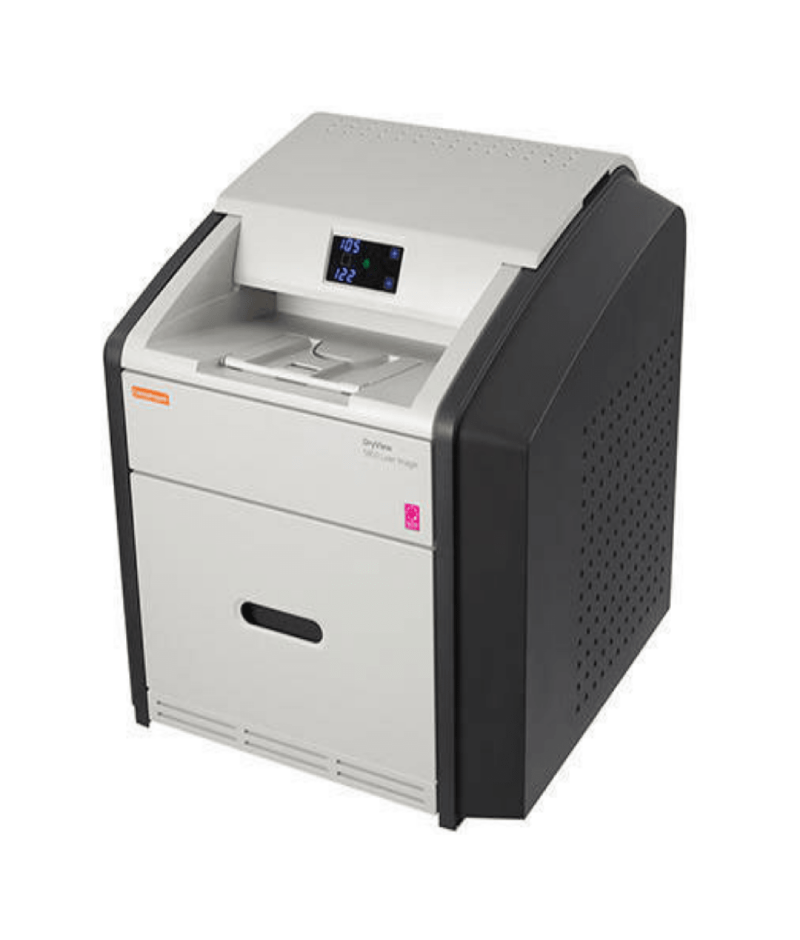

CARESTREAM DRYVIEW 5950



SPECIFICATION         PARAMETER
Brand Carestream Model Dryview 5950 Technology Photothermographic(dry laser) Laser image quality 508 pixels per inch, 50 micron laser spot spacing 14-bit pixel depth architecture Throughput Capable of greater than 40 films per hour 14 x 17 in. Laser Imaging Film Blue 7-mil polyester base Daylight-load film cartridges 125 sheets film sizes 14 x 17 in 11 x 14 in 10 x 12 in 8 x 10 in Weight 79 kg Power 100–120 VAC; 50/60 Hz 200–240 VAC; 50/60 Hz
Experience the difference of using a C-arm designed for the specific needs in Orthopedics. The power to penetrate dense anatomy in lumbar and hip regions in small or large patients. The precision to accentuate boney anatomy for clear spine and ortho images. The performance to get the image you need in less time and with fewer exposures.
