CATHLAB MACHINE SALES & SERVICE


Biomed Technology is a professional company incorporated to promote high quality, cost effective CATHLAB Sales, Service and Repair. Our team has extensive experience of over 10 years in medical imaging service industry and installed all over India and sales to world.
We specialized in sales, service for CATHLAB machines are Siemens, Philips, Hitachi, GE and Toshiba. In addition to the innovative service and parts solutions we can assist you from end to end on your imaging project requirements including system purchase, site planning, relocation, installation and applications. Our clients range from big and small hospitals, nursing homes, diagnostic centers and individuals running diagnostic facilities. CATHLAB models are
PHILIPS:Allura Xper FD10, Allura Xper FD20
GE:GE Innova 2100, Innova 3100
SIEMENS:Artis ZEE, Artis DFC

REFURBISHED CATHLAB MACHINE DEALERS AND SERVICE PROVIDERS IN BANGALORE, INDIA

Biomed Technology providing the highest quality of product & service at an affordable price. We are one of the industry’s full service solutions for refurbished cath labs. Biomed Technology takes great pride in the selection of our medical systems, refurbishing process, and our ability to provide unparalleled service for our customers. Biomed Technology Services has been engaged, since 2010, cath lab experience, our team of engineers, product specialist can provide you with all of the necessary tools & resources needed to build an efficient & functional cath lab.
To contact First step enquiry about Cath Lab, and last few steps such as installation and technical servicing, our brilliantly skilled experts here training to successfully guide you through each step of the way during your Cath Lab purchase. Every Cath Lab we offer can be custom reconditioned to meet your financial and technical needs, for further details and contact information visit our website biomedtechnology.co.in.



Allura Xper FD10



SPECIFICATION              PARAMETER
Brand Philips MODEL Allura Xper FD10 CONFIGURATION Floor or ceiling G Depth(cm) 105 Sid range(cm) 86.5-123 (34-48.4) Motorized/manual Motorized General system 480 VAC; 60 Hz; 3-phase X-ray generator Supplied by system Movement 4-way floating, Xper table Max frame rate, fps 60 ower rating, kw @ 100 kvp 100 Radiographic ma 1-1,250 Radiographic kv 40-125 Fluoroscopic(ma) 60 mA nominal for pulsed fluoro Fluoroscopic(kv) 40-125 Heat storage capacity(hu) 5400000 Heat dissipation rate(hu/min) 910000

Allura Xper FD20



SPECIFICATION              PARAMETER
Brand Philips MODEL Allura Xper FD20 CONFIGURATION C (CLEA) Depth(cm) 95 Cranial-to-caudal angulation(deg) 90/90 Sid range(cm) 89.5 -119.5 Motorized/manual Motorized General system 480 VAC; 60 Hz; 3-phase X-ray generator Supplied by system ROOM SIZE NEEDED(M) 7.6 x 5.3 Max frame rate, fps 60 power rating, kw @ 100 kvp 100 Radiographic ma 1-1,250 Radiographic kv 40-125 Fluoroscopic(ma) 60 mA nominal for pulsed fluoro Fluoroscopic(kv) 40-125 Heat storage capacity(hu) 5400000 Heat dissipation rate(hu/min) 910000 Cooling method Recirculating oil

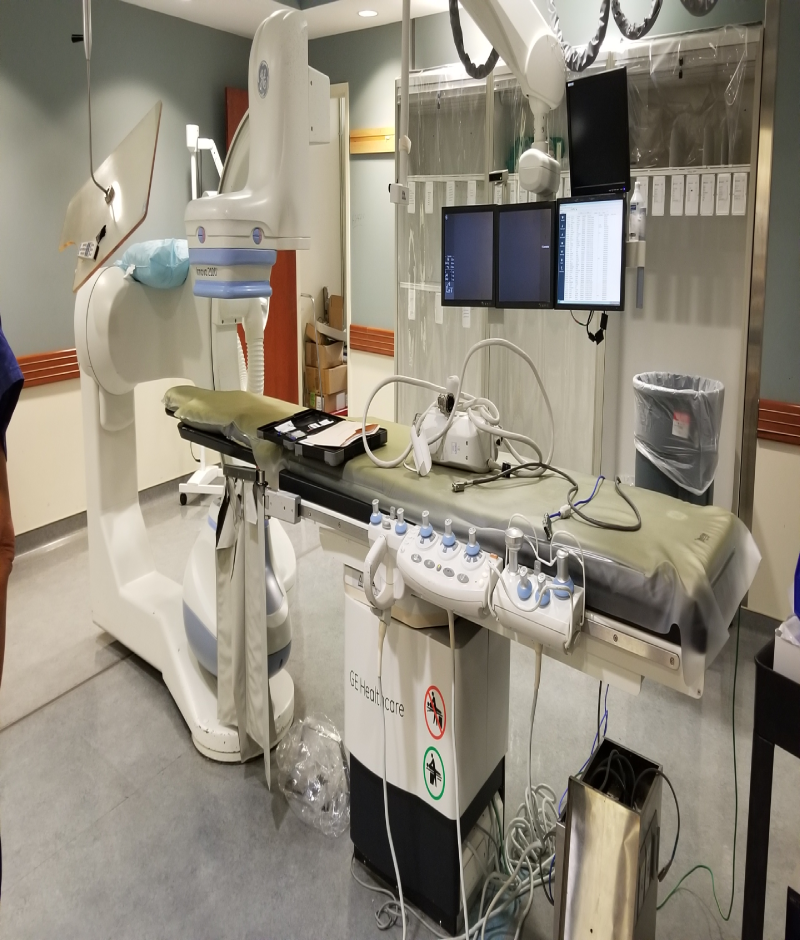

GE Innova 2100



SPECIFICATION              PARAMETER
Brand GE MODEL Innova 2100 Type 3-axis,floor-mounted L/offset C Depth(cm) 107 Park capability ±95° L-arm rotation Sid range(cm) 82.6-116.1 Motorized/manual Motorized Lao projection (PA GANTRY) 105 Rao projection (PA GANTRY) 117 Movement 8-way horizontal float power rating, kw @ 100 kvp 100 Radiographic ma 1-1,000 Radiographic kv 40-125 Fluoroscopic(ma) Automatic Fluoroscopic(kv) 60-120 1024 x 1024, images 36000 Cooling method(X-RAY TUBE) Oil/H2O closed loop

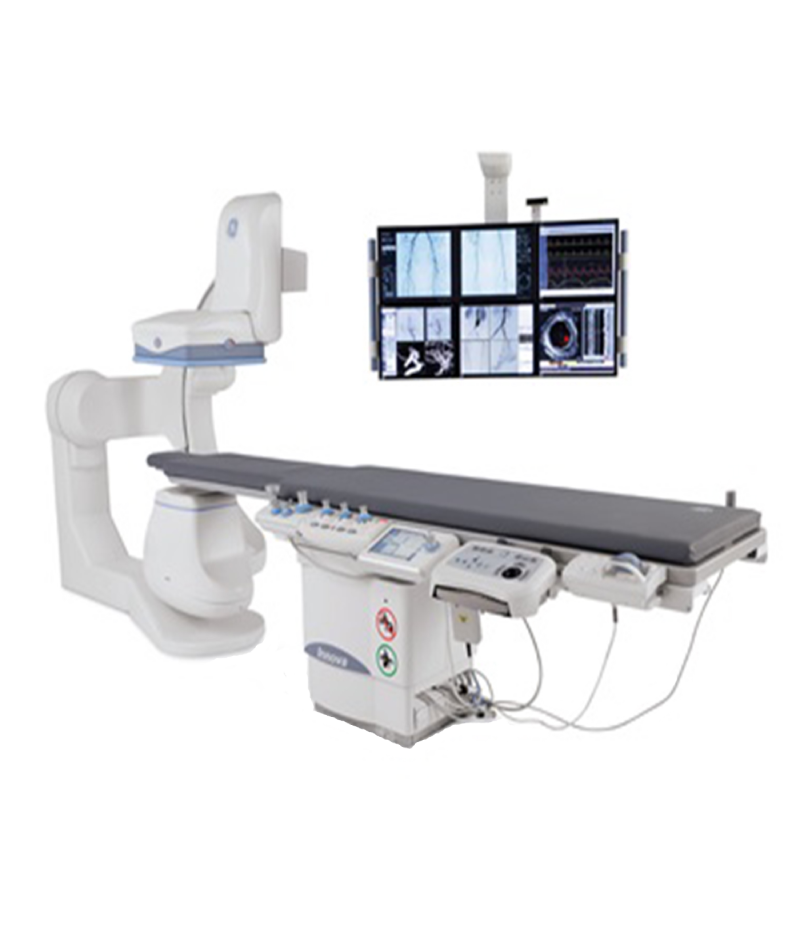

Innova 3100



SPECIFICATION              PARAMETER
Brand GE MODEL Innova 3100 Type 3-axis,floor-mounted L/offset C Depth(cm) 107 Park capability ±95° L-arm rotation Sid range(cm) 82.6-119.3 Motorized/manual Motorized General system 480 VAC; 60 Hz; 3-phase Movement 8-way horizontal floating Max frame rate, fps 60 power rating, kw @ 100 kvp 100 Radiographic ma 10-1,000 Radiographic kv 40-125 Fluoroscopic(ma) Automatic Fluoroscopic(kv) 60-120 Heat storage capacity(hu) 5100000 Cooling method(X-RAY TUBE) Oil/H2O closed loop

Artis ZEE



SPECIFICATION              PARAMETER
Brand Siemens MODEL Artis zee floor-mount for IR Type Single plane Depth(cm) 92 Rao projection +/-130 Lao projection 120 at 25/sec Sid range(cm) 90-120 Motorized/manual Motorized Power rating(kw) Power according to IEC 15kW,40kW,80kW; nominal power 18kW,52kW,100kW Movement 4-way horizontal float X-ray density < 1mm Al power rating, kw @ 100 kvp 100 ROOM SIZE NEEDED(M) 5 x 5.9 Radiographic kv 51-125 Fluoroscopic(ma) 0.1-24 Fluoroscopic(kv) 51-125 Heat storage capacity(hu) 2,000,000 anode;2,400,000 housing Cooling method(X-RAY TUBE) Oil/H2O closed loop

Artis DFC



SPECIFICATION              PARAMETER
Brand Siemens MODEL Axiom Artis dFC Tilt speed +4.5 and -1.5 Depth(cm) 93 FDD range (cm) 53 to 83 Nominal output (kW) 100 Radiographic 50 to 125 Fluoroscopic 50 to 125 Maximum tube current(mA) 1000 Fluoro pulse: frequency(pps) 10, 15 and 30 Fluoroscopy kV and mA control Automatic Insert type MEGALIX Cat Focal spot sizes (mm) 0.4/0.8 Minimum room size (w x l x h)(m) 5.9 x 6.5 x 2.5 Digital image matrix (pixels) 1024 x 1024 Image bit depth 12
Experience the difference of using a C-arm designed for the specific needs in Neonatal Products.
